Basic information:Vibrating sample magnetometer

Version:Lake Shore 7404

Manufacturer: Lakeshore, USA

Main technical parameters:

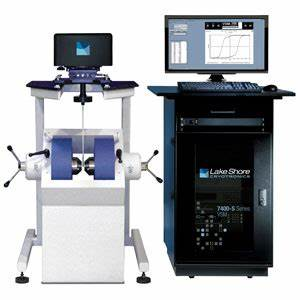

The Lake Shore model 7404 vibrating sample magnetometer is currently the most sensitive vibrating sample magnetometer in the world, and the test sensitivity can reach 5×10-7 Emu. It is mainly used for the measurement of bulk, powder, thin sheet, single crystal and liquid materials. It can complete the measurement of hysteresis loop, initial magnetization curve, demagnetization curve and temperature characteristic curve, IRM and DCD curve. With different high and low temperature options, the temperature function of magnetization data can be measured, and Curie temperature point can be determined.

Application：

Material performance testing.
